Variable Storage and Lifetime

We need to talk about memory first before talking about GC. So where can variables be stored?

  • Static (compile-time or load time)
  • Stack (runtime) - aka user/runtime/system stack
  • Heap (runtime)

For primitive variables, there are 3 categories (given different lifetimes)

  • Globals (static storage)
    • Variables declared outside of any function or class (outermost scope)
    • Scope: accessible to all statements in all functions in the file
    • Lifetime: from start ofprogram (loading) to end (unloading)
    • Good practice: use sparingly, make constant as often as possible
    • Stored in read-only or read-write segments of the process virtual memory space - allocated/fixed before prograrm starts
      • Read-only segment holds translated/native code as well if any
  • Locals (stack storage)
    • Parameters and variables declared within a function
    • Scope: accessible to all statements in the function they are defined
    • Lifetime: from start to end of the function invocation
    • Stored in User/Runtime stack in process virtual memory space
      • Allocated/deallocated with functino invocations and returns
  • Dynamic variables, aka pointer variables (heap storage)
    • Pointer variables that point to variables that are allocated explicitly
    • Scope: global or local depending on where they are declared
    • Lifetime: from program point at which they are allocated with new to the one that at which they are deallocated with delete
    • Pointer variables (the address) are either globals or locals
    • The data they point to is stored in the heap.

Here is a graph of a process memory:

As we all know, we only do garbage collection on the heap for implicit memory allocation.


  • Collector
    • Part of the runtime that implements memory management
  • Mutator
    • User program - change (mutate) program data structures
  • Stop-the-world collector - all mutators stop during GC
  • Values that a program can manipulate directly
    • In processor registers
    • On the program stack (includes locals/temporaries)
    • In global variables (e.g., array of statics)
  • Root set of the computation
    • References to heap data held in these locations
    • Dynamically allocated data only accessible via roots
    • A program should not access random locations in heap

Roots, Liveness, and Reachability

  • Individually allocated pieces of data in the heap are
    • Nodes, cells, objects (interchangeably)
    • Commonly have header that indicates the type (and thus can be used to identify any references within the object)
      • AKA boxed
  • Live objects on the heap
    • Graph of objects that can be “reached” from roots
      • Objects that cannot be reached are garbage
    • An object in the heap is live if
      • Its address is held in a root, or
      • There is a pointer to it held in another live heap object

Liveness of Allocated Objects

  • Determined indirectly or directly
  • Indirectly
    • Most common method: tracing
    • Regenerate the set of live nodes whenever a request by the user program for more memory fails
    • Start from each root and visit all reachable nodes (via pointers)
    • Any node not visited is reclaimed
  • Directly
    • A record is associated with each node in the heap and all references to that node from other heap nodes or roots
    • Most common method: reference counting
    • Must be kept up to date as the mutator alters the connectivity of the heap graph

Classic GC Algorithms

There are mainly three classic GC algorithms

  • Reference counting
  • Mark & Sweep
  • Copying

For the first two method, we need a thing called Free List which keeps 1+ lists of free chunks that we then fill or break off pieces of to allocated an object

Reference Counting GC

  • Each obejct has an additional atomic field in header that holds the humber of pointers to that cell from roots or other objects
  • All cells placed in free list initially with count of 0
  • freeList points to the head of the free list

  • Each time a pointer is set to refer to this cell, the count is incremented
  • Each time a reference is removed, count is decremented
    • If the count goes to 0
      • There is no way for the program to access this cell
    • The cell is returned to the free list
  • When a new cell is allocated
    • Reference count is set to 1
    • Removed from free list
      • Assume, for now, that all cells are the same size and each has 3 fields left and right which are references


  • Memory management overheads are distributed throughout the computation
    • Management of active and garbage cells is interleaved with execution
    • Incremental
    • Smoother response time
  • Locality of reference
    • Things related are accessed together (for memory hierarchy performance)
    • No worse than program itself
  • Short-lived cells can be reused as soon as they are reclaimed
    • We don’t have to wait until memory is exhausted to free cells
    • Immediate reuse generates fewer page faults for virtual memory
    • Update in place is possible


  • High processing cost for each pointer update
    • When a pointer is overwritten the reference count for both the old and new target cells must be adjusted
    • May cause poor memory performance
    • Hence, it is not used much in real systems
  • Extra space in each cell to store count (normally sizeof(int))
  • Cyclic data structures can’t be reclaimed (e.g. doubly linked lists)

Mark & Sweep GC

  • Tracing collector
    • mark-sweep, mark-scan
    • use reachability (indirection) to find live objects
  • Object are not reclaimed immediately when they become garbage
    • Remain unreachable and undetected until storage is exhausted
  • When reclamation happens the program is paused
    • Sweep all currently unused cells back into the freeList
    • GC performs a global traversal of all live objects to determine which cells are reachable (live or active)
      • Trace, starting from roots, marking them as reachable
      • Free all unmarked cells
  • Each cell contains 1 bit (markBit) of extra info
  • Cells in freeList have markBit set to 0
  • No Update(...) routine necessary


  • Cycles are handled quite normally
  • no overhead placed on pointer manipulations
  • Better than (incremental) reference counting


  • Start-stop algorithm (aka stop-the-world)
    • Computation is halted while GC happens
    • Not practical for real-time systems
  • Asymptotic complexity is proportional to the size of the heap not just the live objects for sweep
  • Fragments memory (scatters free cells across memory)
    • Loss of memory performace (caching/paging)
    • Allocation is complicated (need to find a set of cells for the right size)
  • Residency - heap ocupancy
    • As this increases, the need for garbage collection will become more frequent
    • Taking processing cycles away from the applicatino
    • Allocation and program performance degrades as residency increases

Copying Collector

  • Tracing, stop-the-world collector
    • Divide the heap into two semispaces
      • One with current data
      • The other with obsolete data
    • The roles of the two semispaces is continuously flipped
    • Collector copies live data from the old semispace
      • FromSpace
      • To the new semispace (ToSpace) when visited
      • Pointers to objects in ToSpace are updated
      • Program is restarted
    • Scavengers
      • FromSpace is not reclaimed, just abandoned


  • Have lead to its widespread adoption
  • Active data is compact (not fragmented as in mark-sweep)
    • More efficient allocation, just grab the next group of cells that fits
    • The check for space remaining is simply a pointer comparison
  • Handles variabl-sized objects naturally
  • No overhead on pointer updates
  • Allocation is a simple free-space pointer increment
  • Fragmentation is eliminated
    • Compaction offers improved memory hierarchy performance of the user program


  • Required address space is doubled compared with non-copying collectors
    • Primary drawback is the need to divide memory into two
    • Performance derades as residency increases (twice as quickly as mark&sweep because half the space)
  • Touches every page (VM) of the heap regardless of residency of the user program
    • Unless both semispaces can be held in memory simultaneously

The Principle of Locality

  • A good GC should not only reclaim memory but improve the locality of the system on the whole
    • Principle of locality programs access a relatively small portion of their address space at any particular time (temperal and spacial locality)
    • GC should ensure that locality is exploited to improve performance wherever possible
    • memory hierarchy was developed to exploit the natural principle of locality in programs
      • Different levels of memory each with different speeds/sizes/cost
      • Registers, cache, memory, virtual memory

Generational GC

  • Observations with previous GCs
    • Long-lived objects are hard to deal with
    • Young objects (recently allocated) die young
      • weak-generational hypothesis: most are young (80-90%)
    • Large heaps (that can’t be held in memory) degrade performance

Goal: Make large heaps more efficient by concentrating effort where the reatest payoff is

  • Segregate objects by age into two or more heap regions
    • Generations
      • Keep the young generation separate
    • Collected at different frequencies
      • The younger the more often
      • The oldest, possible never
  • Can be implemented as an incremental scheme or as a stop-the-world scheme
    • Using different algorithms on the different regions
  • Promotion
    • Move object to older generation if its survives long enough

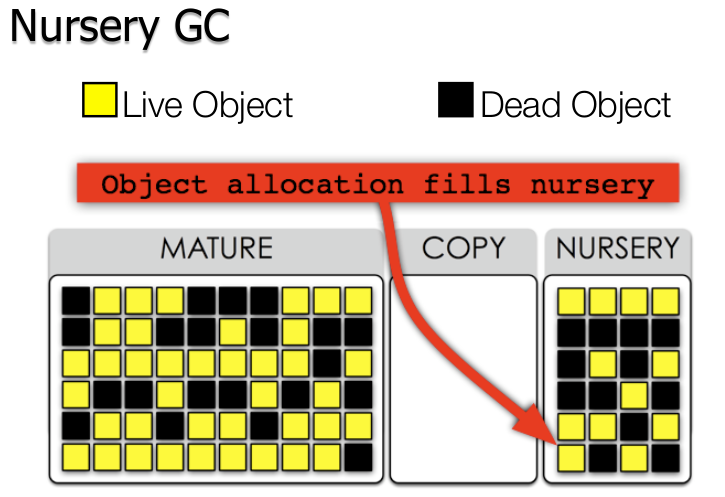

  • Concentrate on youngest generation for reclamation
    • This is where most of the recyclable space will be found
    • Make this region small so that its collection can be more frequent but with shorter interruption
  • A younger generation can be collected without collecting an older generation
  • The pause time to collect a younger generation is shorter than if a colection of the heap is performed
  • Young objs that survive minor collections are promoted
    • Minor collections reclaim shortlived objects
  • Tenured garbage: garbage in older generations
  • Allocation always from minor
    • Except perhaps for large or known-to-be-old objects
  • Minor frequent, major very infrequent
  • Major/minor collections can be any type
    • Mark/sweep, copying, mark/compact, hybrid
    • Promotion is copying
  • Can have more than 2 generations
    • Each requiring collection of those lower/younger

  • Minor Collection must be independent of major
    • need to remember old-to-young references
    • Usually not too many - mutations to old objects are infrequent

  • What about young-to-old?
    • We don’t need to worry about them if we always collect the young each time we collect the old (major collection)
  • Write barriers
    • Catching old-to-young pointers
    • Code that puts old-generation object into a remembered set
      • Traversed as art of root set
      • All field assignments aka POINTER UPDATES IN YOUR CODE!
  • Alternative to write barriers
    • Check all old objeccts to see if they point to a nursery object
    • Will negate any benefit we get from generational GC
